ProfiPilot
Contact us for more information
| Range | until 5km (line of sight), until 3km (without line of sight) |
| Frequency | 868 MHz (EU) |
| Digital outputs | 12 (Standard), 2 (Pole turner), 8 (Optional) |
| Switching capacity relay | 8A / 16A @ 8..36VDC / 400VAC |
| Analog outputs | 2 (4..20mA), 1 (0..24V), 1 (0..10kOhm) |
| Digital inputs | 14 (Standard), 8 (Optional) |
| Analog inputs | 5 (4..20mA), 1 (0..10V), 1 (0..10kOhm), 6 (Optional) |
| Input voltage | 12VDC, 24VDC, 230VAC, 400VAC |
| Availability | on demand |
| Applications | high power slurry pumps, Irrigation pumps, Machine control, HMI... |

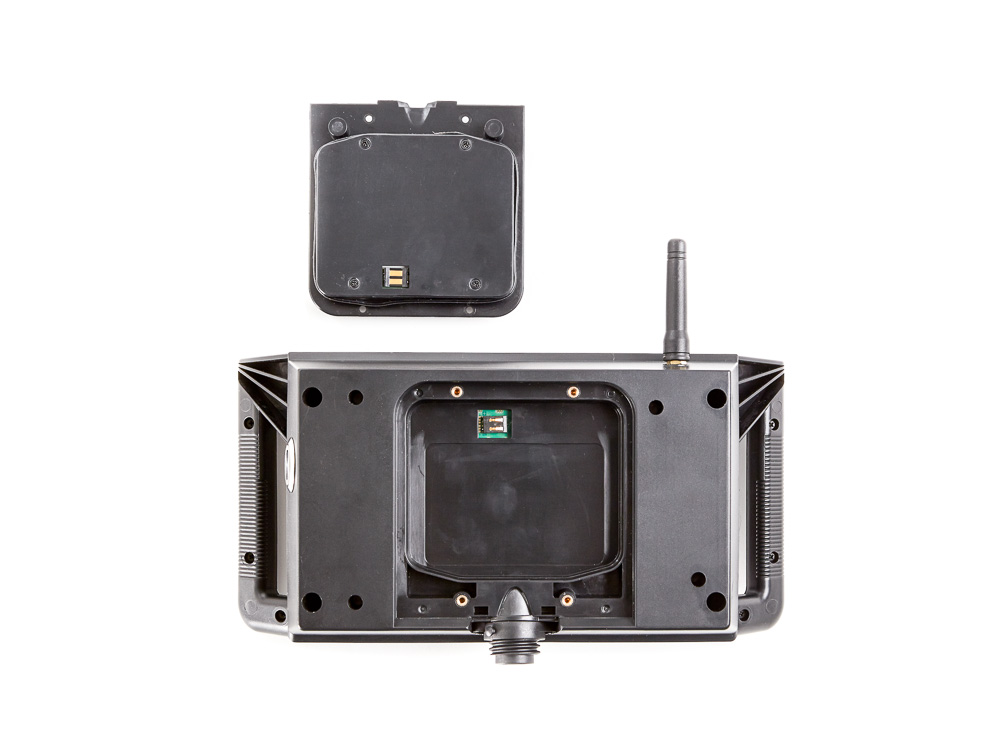

Wireless remote controls with touch display

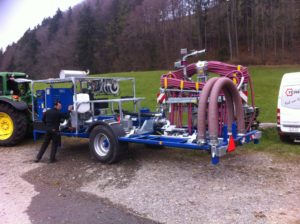

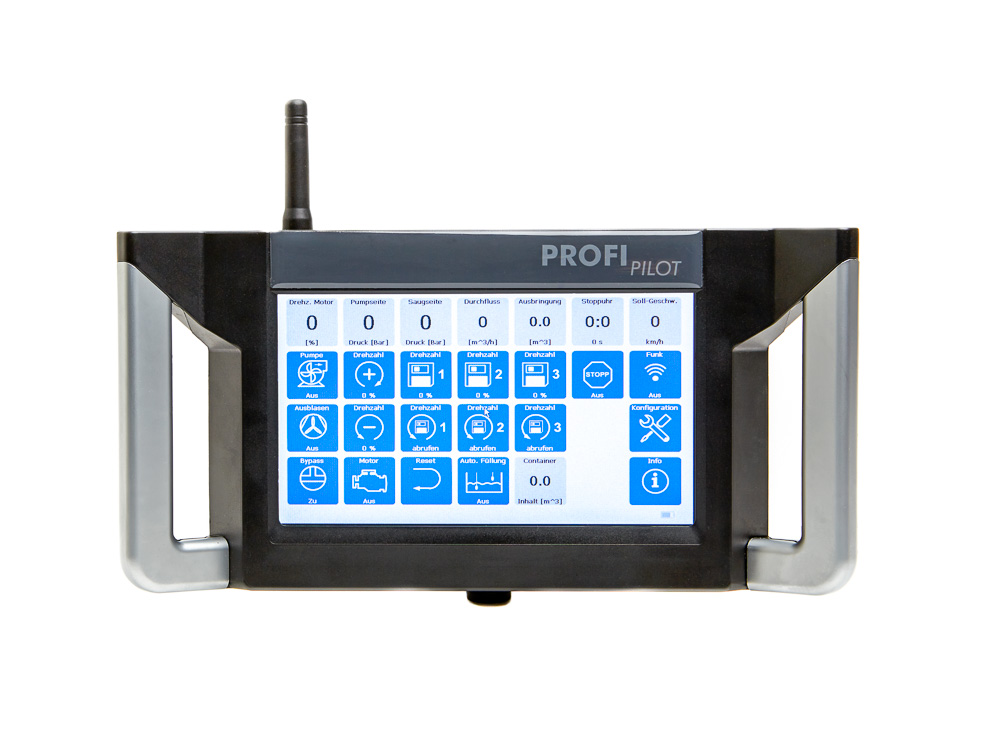

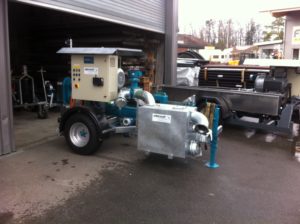

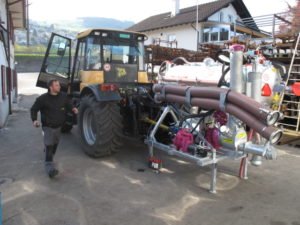

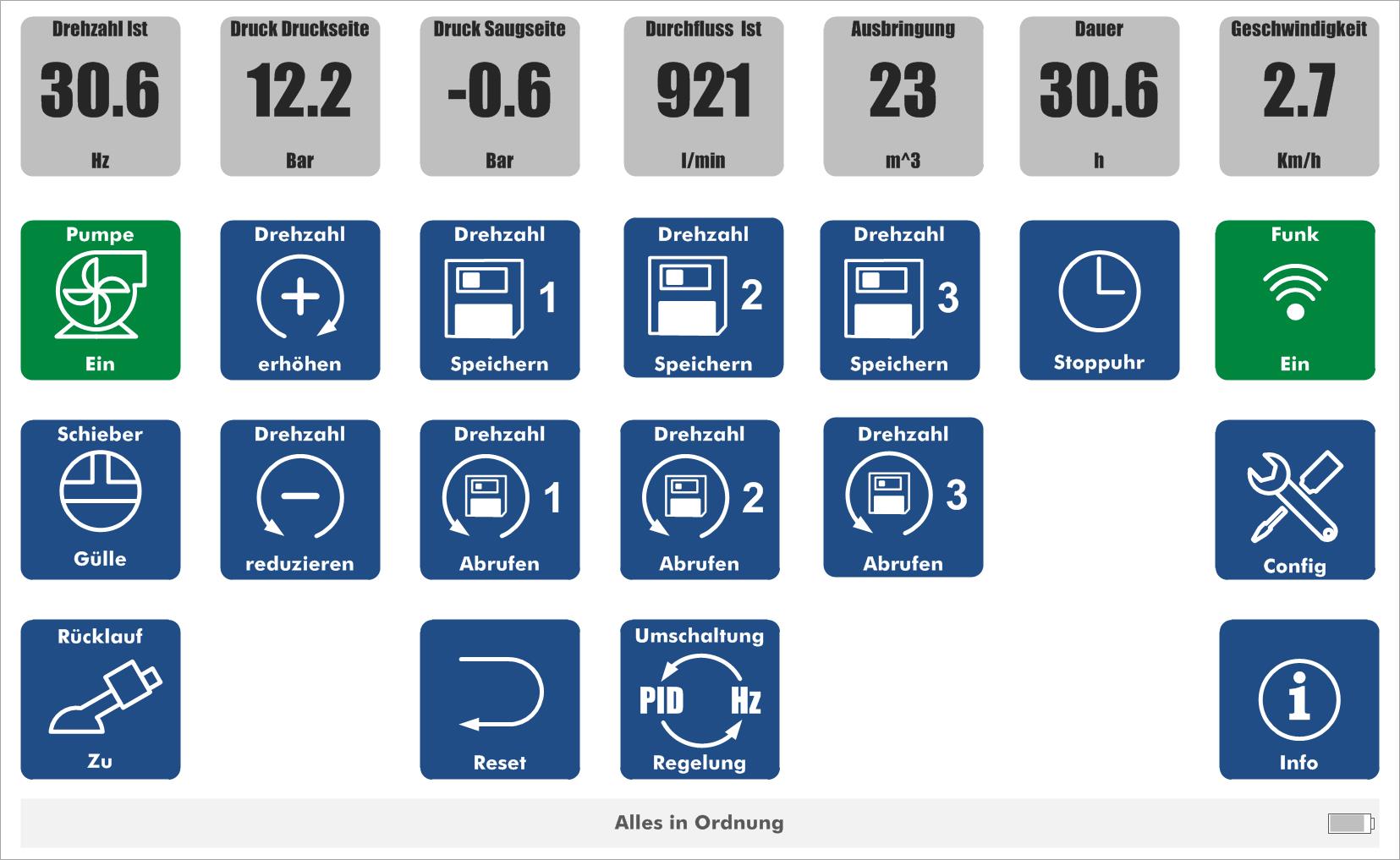

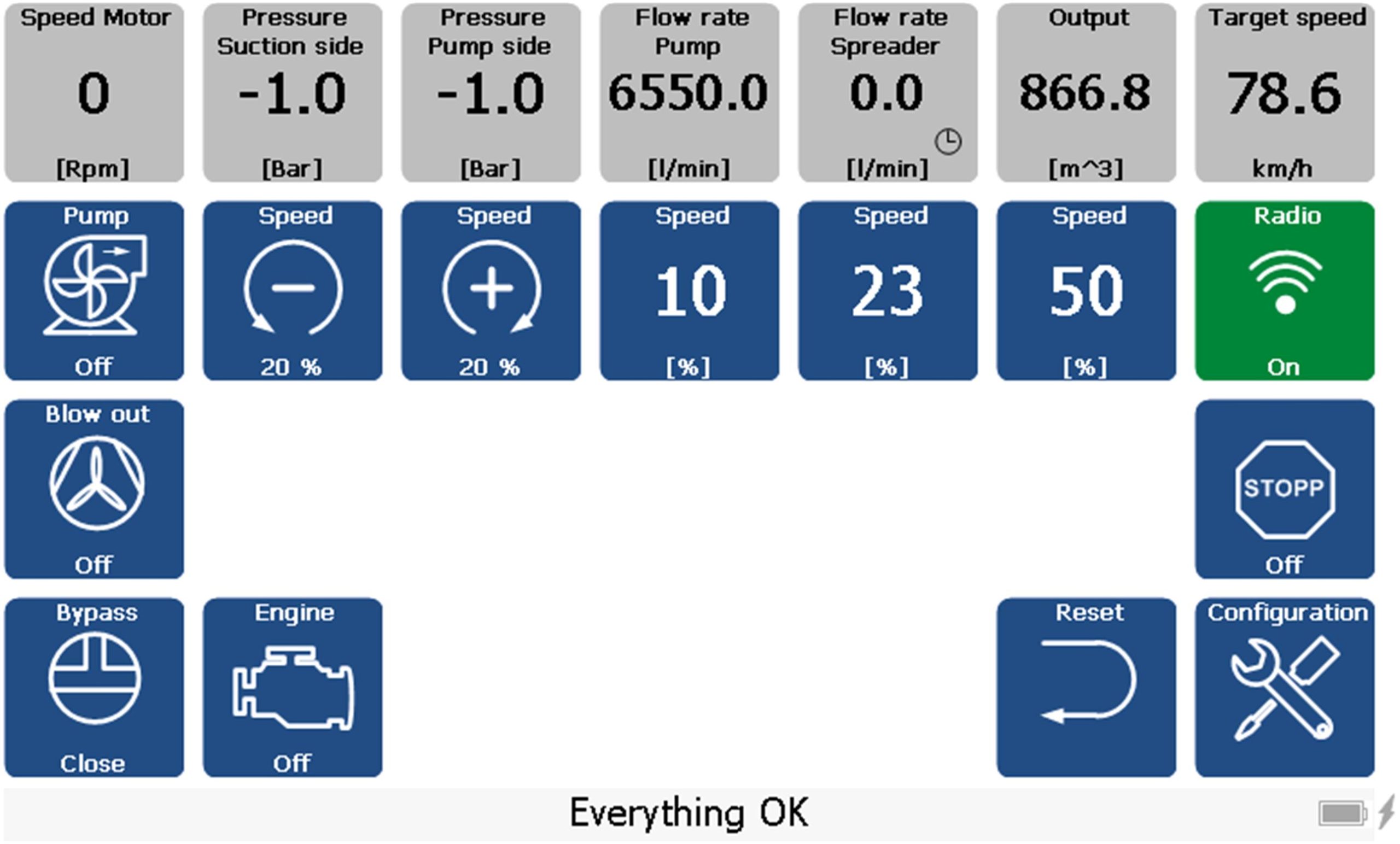

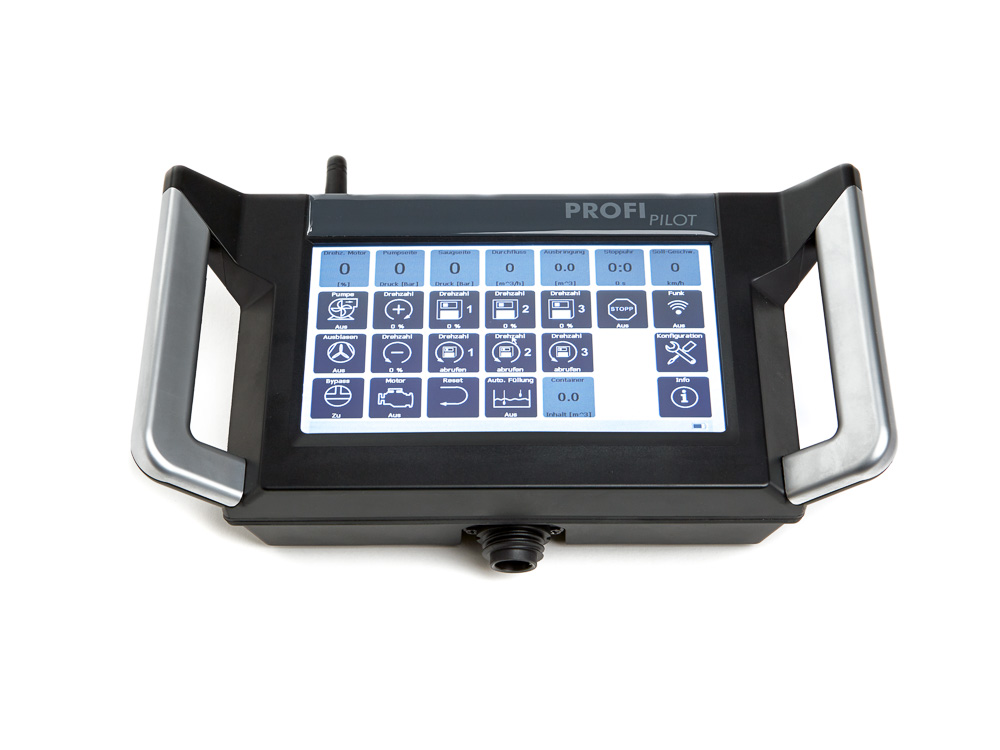

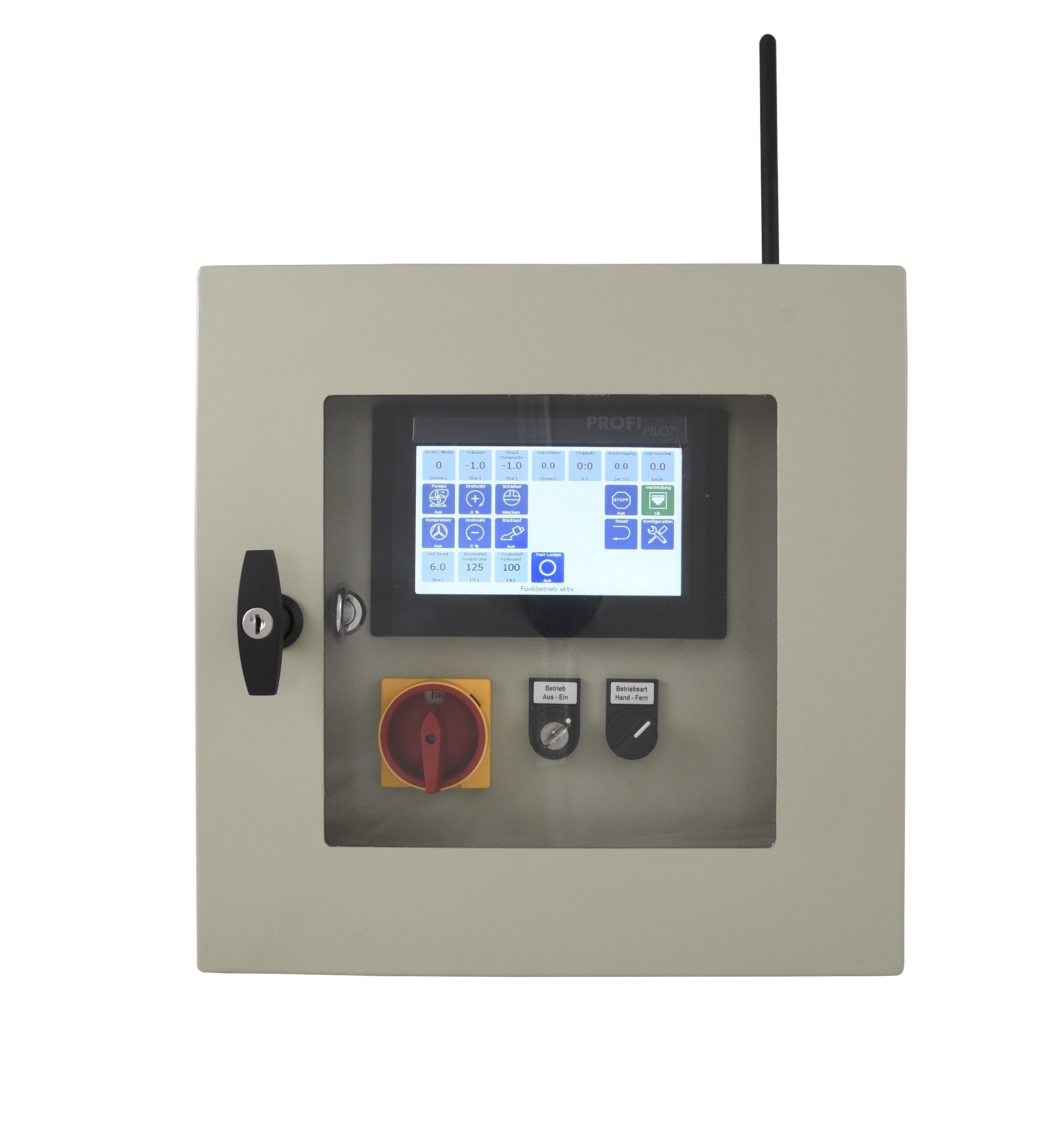

The ProfiPilot is designed especially for applications in agriculture to be able to operate and monitor pumps, machines, plants etc. The ProfiPilot has a 7” touch display, which is installed in the tractor , hauling device and via a wireless connection one receives the revolutions, flow through, status etc. of the remote pump. In particular with the ProfiPilot contractors can operate and monitor the whole pump, machine or plant from the tractor. One receives in a cycle the required information about pressure, flow through, slider setting etc. in real time on the 7” touch display and one can adapt the pump capacity to the conditions such as terrain, viscosity of the slurry etc.
