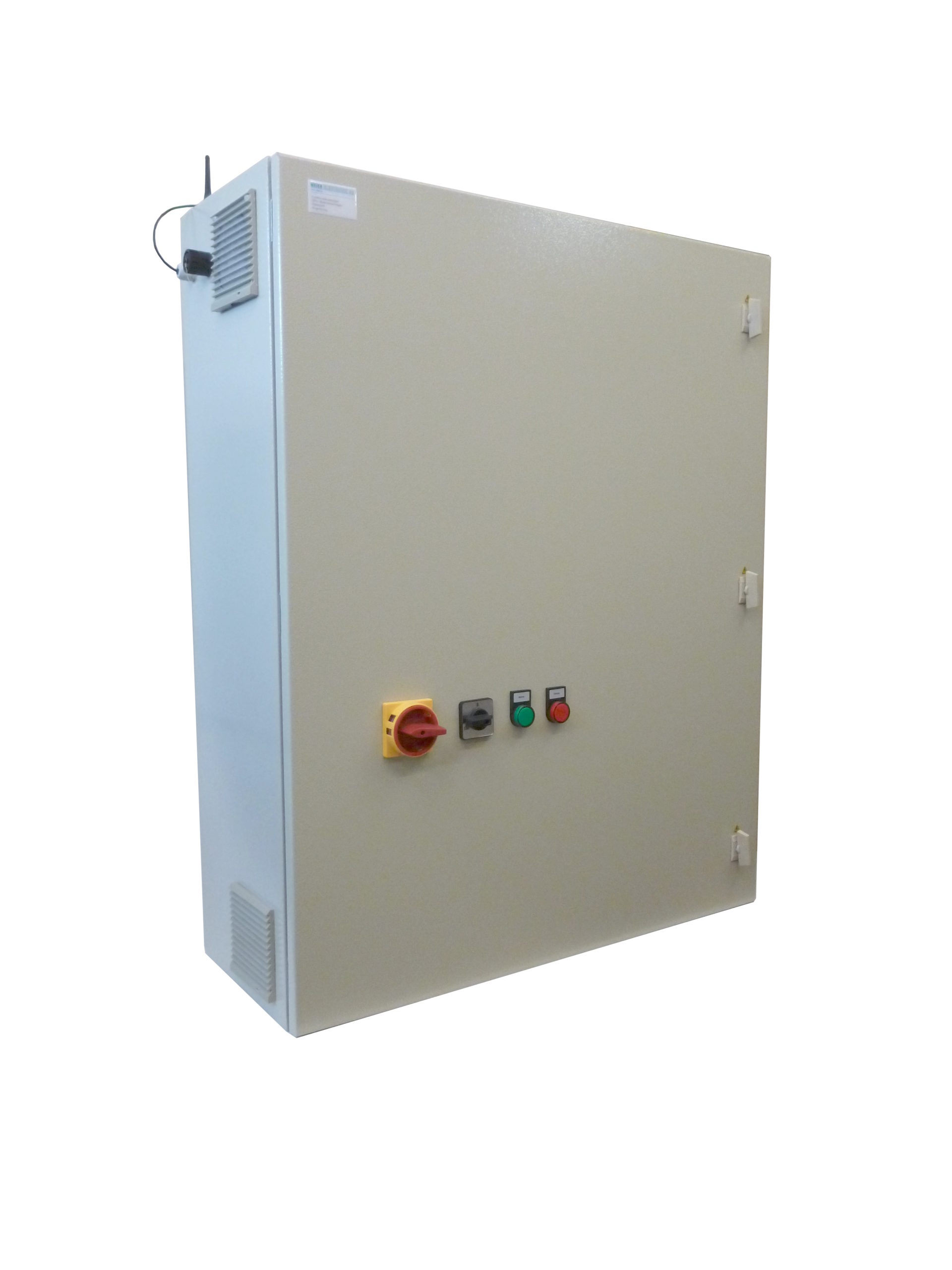

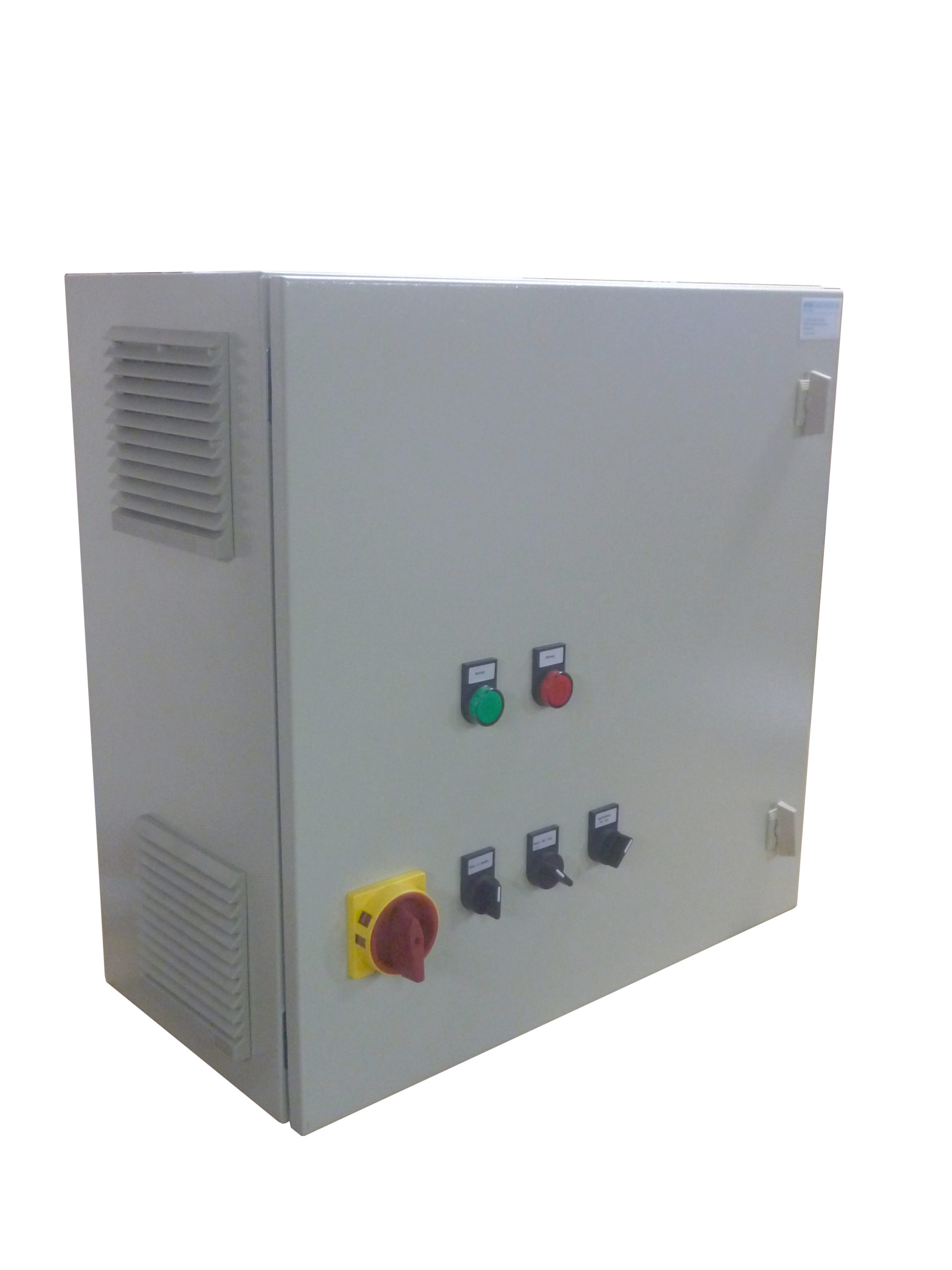

Frequency conversion motor starter

Contact us for more information
Performance range 4 .... 100kW
Connection 3L+N+PE / 3L+PE
Supported motor types three-phase motor
Technology Insulated-gate bipolar transistor (IGBT)
Function Frequency inverter
Availability 2-6 days delivery time

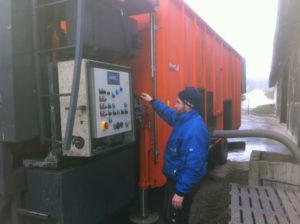

Applications Pumps, Agitator, Conveyors, float control, feed agitator

The motor start controls for optimal revolutions and torque

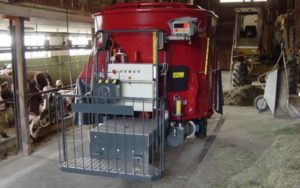

The frequency conversion motor controls with various motor guards and monitoring functions are very suitable for starting small and large motors (0.1 bis 100kW), when different revolutions an doptimum torque is required..  On account of the large range of possible o[ptions the controls have very diverse uses. The controls can be used for nominal voltage regulated agitators, ventilators, conveyor belts, pumps, feed mixers, float controls etc.
The controls are standard and are fitted with two wireless and a Klixon connector. A Hand-0-Auto switch with selection between wireless 1 and wireless 2 allows simple operation. On the frequency converter display one can read the motor current and parameterise the controls.

The frequency conversion controls are availoable in various standard versions.
We offer the following standard versions:

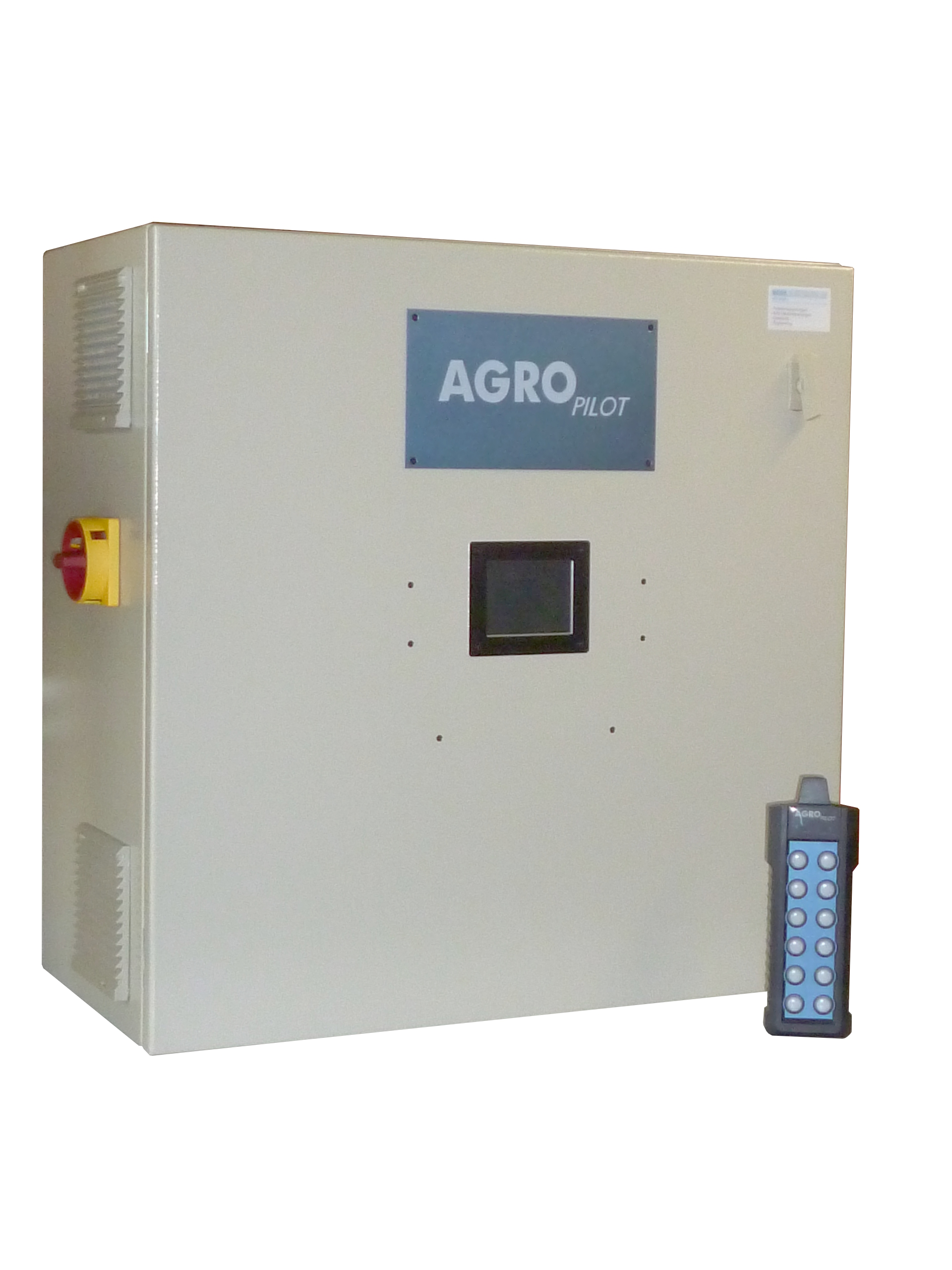

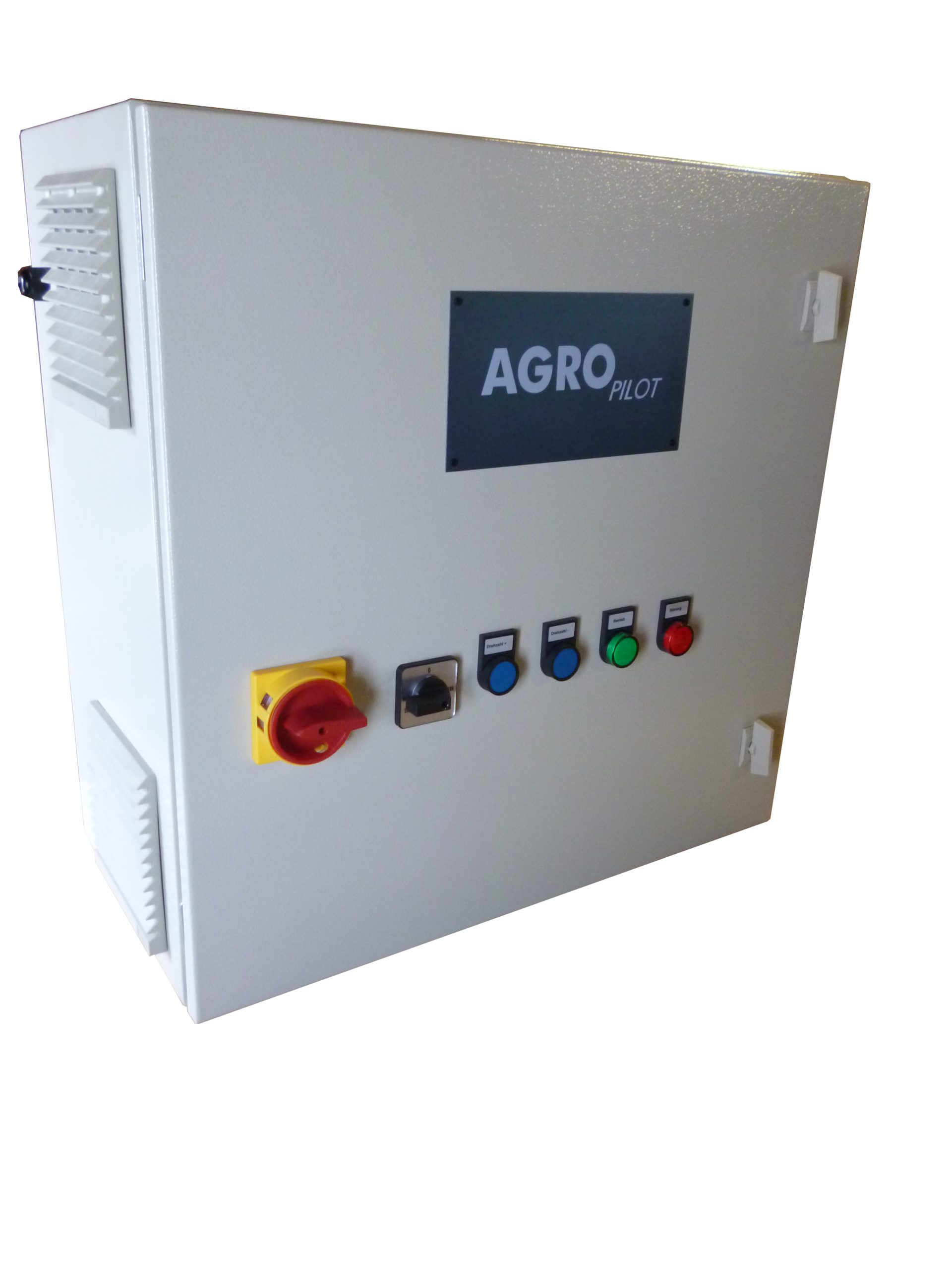

  • Frequency converter Pump control with 3 fixed speeds and nominal current regulated operation, incl. slide and return control for 7.5-22kW incl. AgroPilot (stock items)
  • Frequency converter Pump control with 3 fixed speeds and nominal current regulated operation, incl. slide and return control for 22-30kW incl. AgroPilot (custom-made)
  • Option integrated slider controls for slurry/water reswitching (including wireless connection)
  • Option integrated electrocylinder controls for the reflux of slurry pumps (including wireless connection)
  • Option turn controls for pumps/suction (including wireless connection)
  • Option Start-Hand-0-Time switch instead of Start-Hand-0-Remote
  • Option Start-Hand-0-Auto switch instead of Start-Hand-0-Remote
  • Option PT100 motor guard
  • Option PTC motor guard
  • Option FI switch (25/40/63A)
  • Option digital timer
  • Option cycle relay for breaking peak power
  • Option operational hours counter
  • Option undervoltage monitoring
  • Option overvoltage monitoring, three-phase monitoring, phase loss monitoring etc.
  • Option manual change of direction of revolution
  • Option automatic change of direction of revolution
  • Option service box for On/Off switch
  • Option upstream motor guard for fan controls
  • Option SPS with or without display for time settings/connections
  • Option 3.5” touch display for parameter settings or for machine operation/emergency controls
  • Option 7” touch display for parameter settings or for machine operation/emergency controls
  • Option 12” touch display for parameter settings or for machine operation/emergency controls
  • Option integrated CoDeSys SPS (programmable logic controller) according to IEC 61131-3
  • Option integrated MiniPilot (for low-cost wireless applications)
  • Option integrated IoTPilot-Multi (switching by Smart Phone, Web-App)
  • Option integrated AgroPilot or MultiPilot switching by wireless over large distances)
  • Further options or wishes upon request
  • Rapid and cost-effective special devices
  • We optimise your control options and thus reduce your stock

This product is IoT compatible. learn more
