Operation of centrifugal pump via touch radio remote control
Range | until 5km (without line of sight) |
Digital outputs | 12 |
Digital inputs | |
8 | |
Analog inputs | 4 x 4..20mA |
Input voltage | 12VDC |

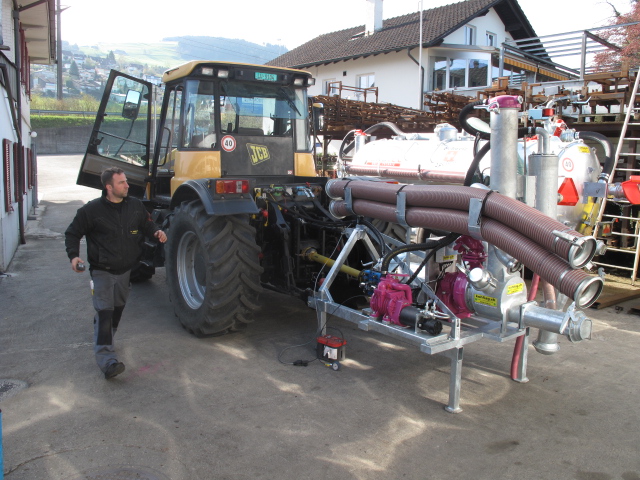

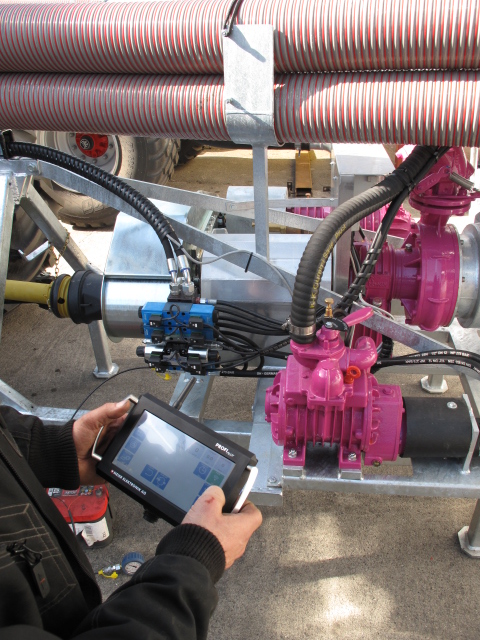

When spreading slurry, more and more efficient working with minimum personnel is required. The high-performance pumps at the manure pit or at the manure container supply the drag hose spreader, which is up to several kilometres away, with correctly dosed manure. With our ProfiPilot radio remote control, the user in the drag hose tractor can optimally monitor and operate the pump. The pump pressure, flow rate, container level etc. are transmitted from the pump to the drag hose distributor. The user sees on the monitor the necessary forward speed for the corresponding application (m^3/ha) and can adjust his speed accordingly. In addition, he can control the speed of the pump depending on the circumstances or he can have the pumping capacity regulated automatically on the basis of pressure or flow.
The radio remote control is approved for the European market and with an RF link budget of 162 dB it is unrivalled in its range (without line of sight up to 5km). The extremely sensitive radio reception of up to -135dBm is a novelty in radio technology and enables us to cover these extremely long ranges while maintaining the permitted radiated power (500mW).
All the functions listed below are safely transmitted over several Kiliomter range to the pump or vice versa and executed there:
- Switch pump on / off
- Gate valve switching between slurry / water
- Return Open or close
- Increase / reduce speed continuously
- Switching to pressure-controlled spreading operation
- A maximum of three speeds can be stored and recalled

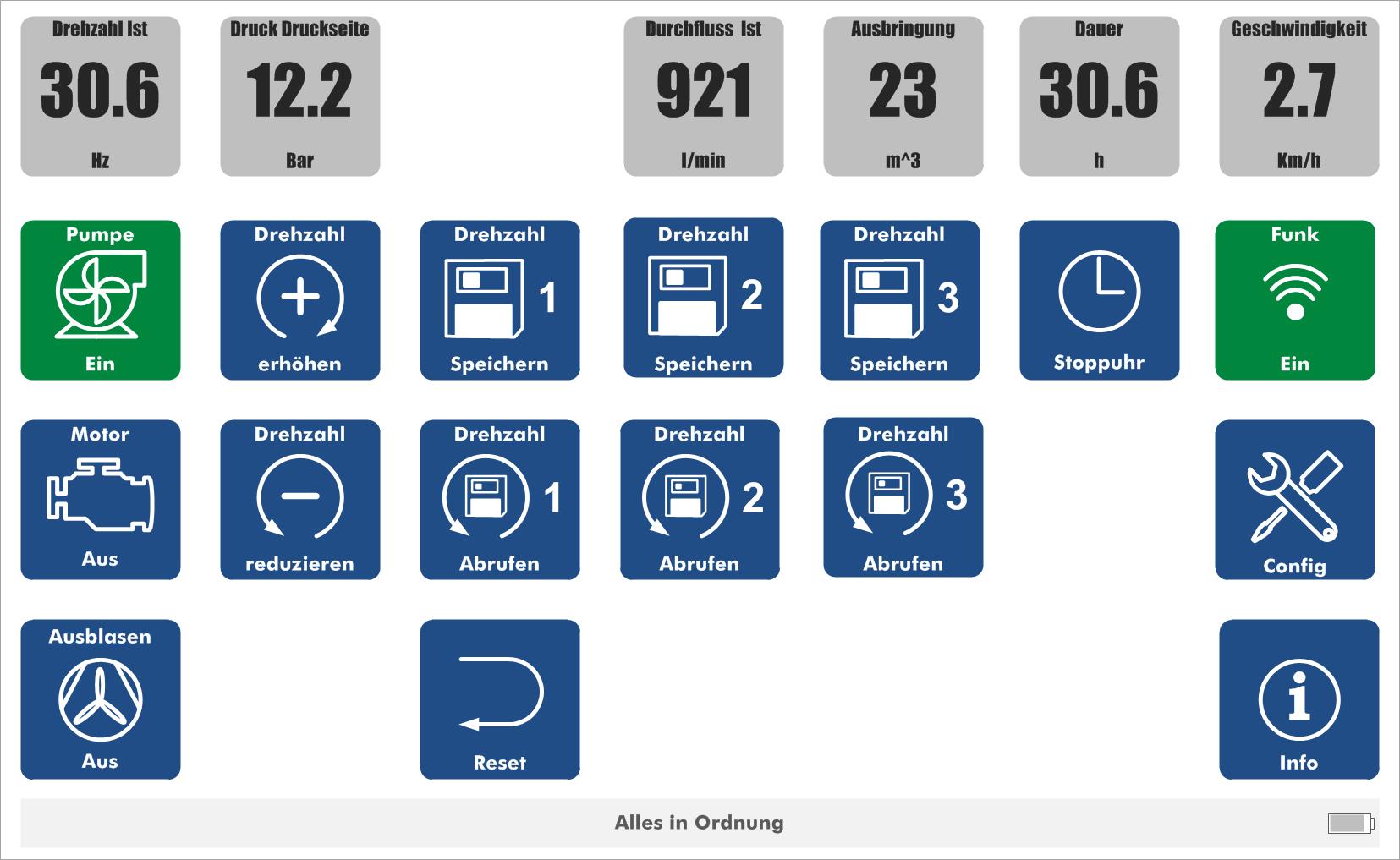

- Display of the speed (rpm or Hz when using a frequency converter control)
- Display of the pump pressure (bar)
- Suction pressure display (bar)
- Display of the flow rate (l/min)
- Display of the spread quantity (m^3)
- Indication of the duration of application
- Display of the manure container level (if available)
- Configuration of the drag hose width and the spread rate in m^3/ha for the forward speed calculation
- Display of the driving speed for the defined spreading rate (number m^3/ha)
