TopPilot

Contact us for more information
Digital outputs unlimited
Analog outputs unlimited
Digital inputs unlimited
Analog inputs unlimited
Input voltage 12VDC, 24VDC, 230VAC, 400VAC
Availability on demand

The control system for our pilot units

TopPilot is a control system software from Meier Elektronik AG. It can network all pilot devices as well as third-party devices with each other and thus record measured values, alarms, warnings over long distances, display them graphically or document user input, no matter where they occur. Communication can take place over several kilometres or worldwide, regardless of whether radio or cable is used. With TopPilot you can control pumps, motors, sliders, fire dampers etc. via a single control panel, no matter where in the world they are located. With the help of TopPilot, digital farming, IoT (Internet of Things), Agriculture 4.0 or Industry 4.0 are not just buzzwords, but provide the necessary solution.

  • Worldwide access via PC/laptop or iPad
  • Worldwide access by SmartPhone via own iPhone or Android App (SmartPilot)
  • Alerts or warnings via SMS to different users with different priorities
  • Acknowledgement of faults via SMS, SmartPhone or remote access
  • Up to 64 outstations, which can be controlled by radio, cable or GSM/GPRS
  • Operation of motors, pumps, sliders, extinguishing flaps etc. on site at the outstation, via the control centre, remotely or by SmartPhone

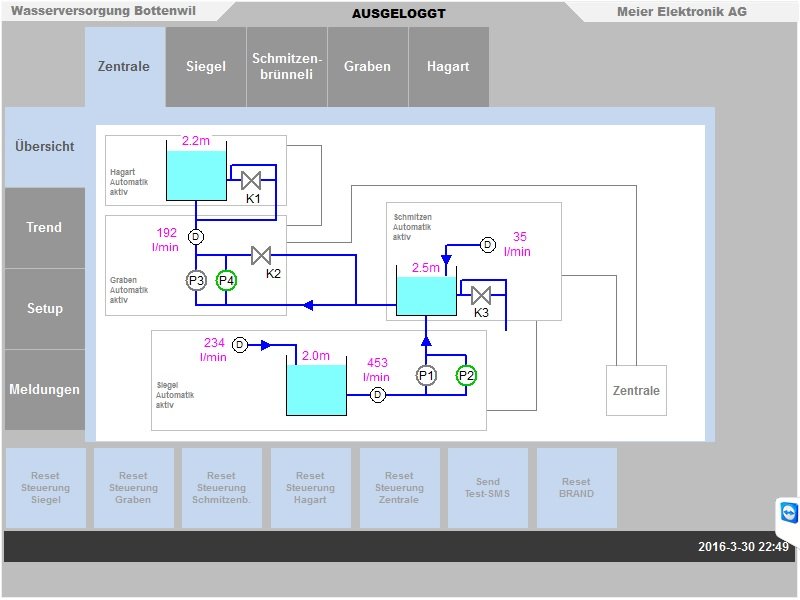

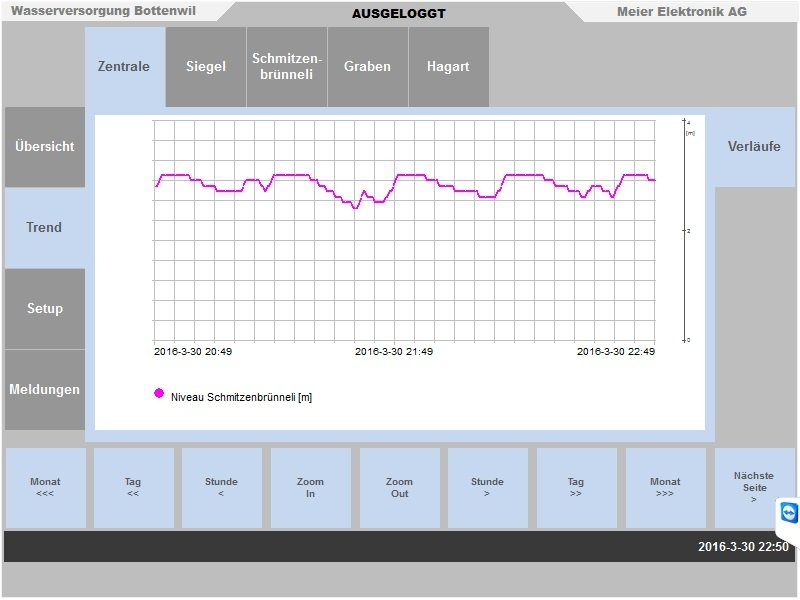

  • Graphical display of measured values such as level, flow, pressure, UV value, etc.

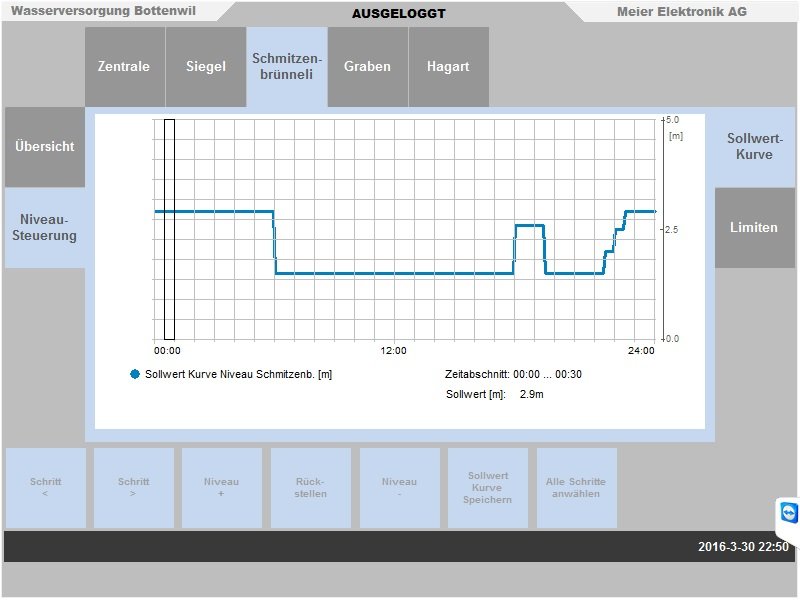

  • Input of a setpoint pump curve for optimum reservoir regulation

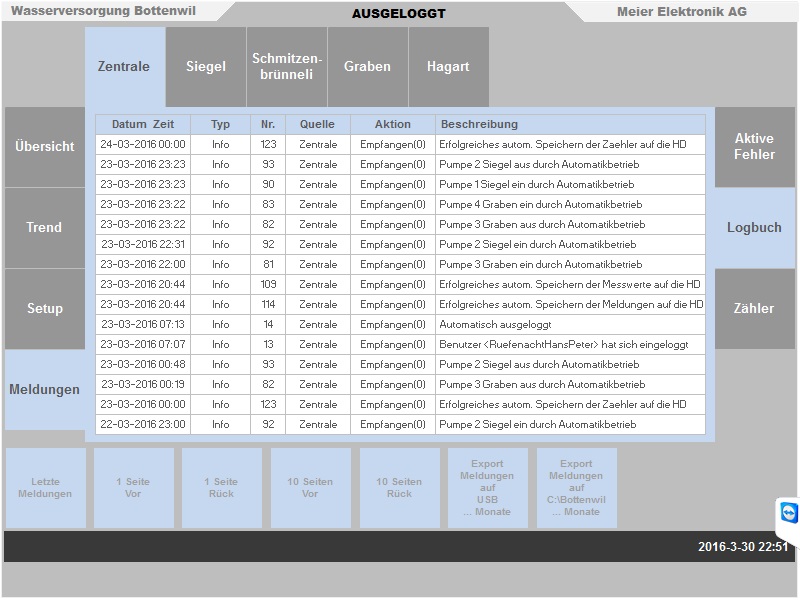

  • Recording of all user inputs and all control engineering activities (logbook)
  • Simple, clear error management
  • User administration with different access rights
  • UPS based controls for independent operation
  • Any functions / customer requirements can be integrated without problems
  • Small to medium water supply systems
  • Complete barn automation
  • Area automation of gates, doors and accesses
  • SmartMetering
  • digital farming
  • Industry 4.0 and agriculture 4.0
  • precision farming
