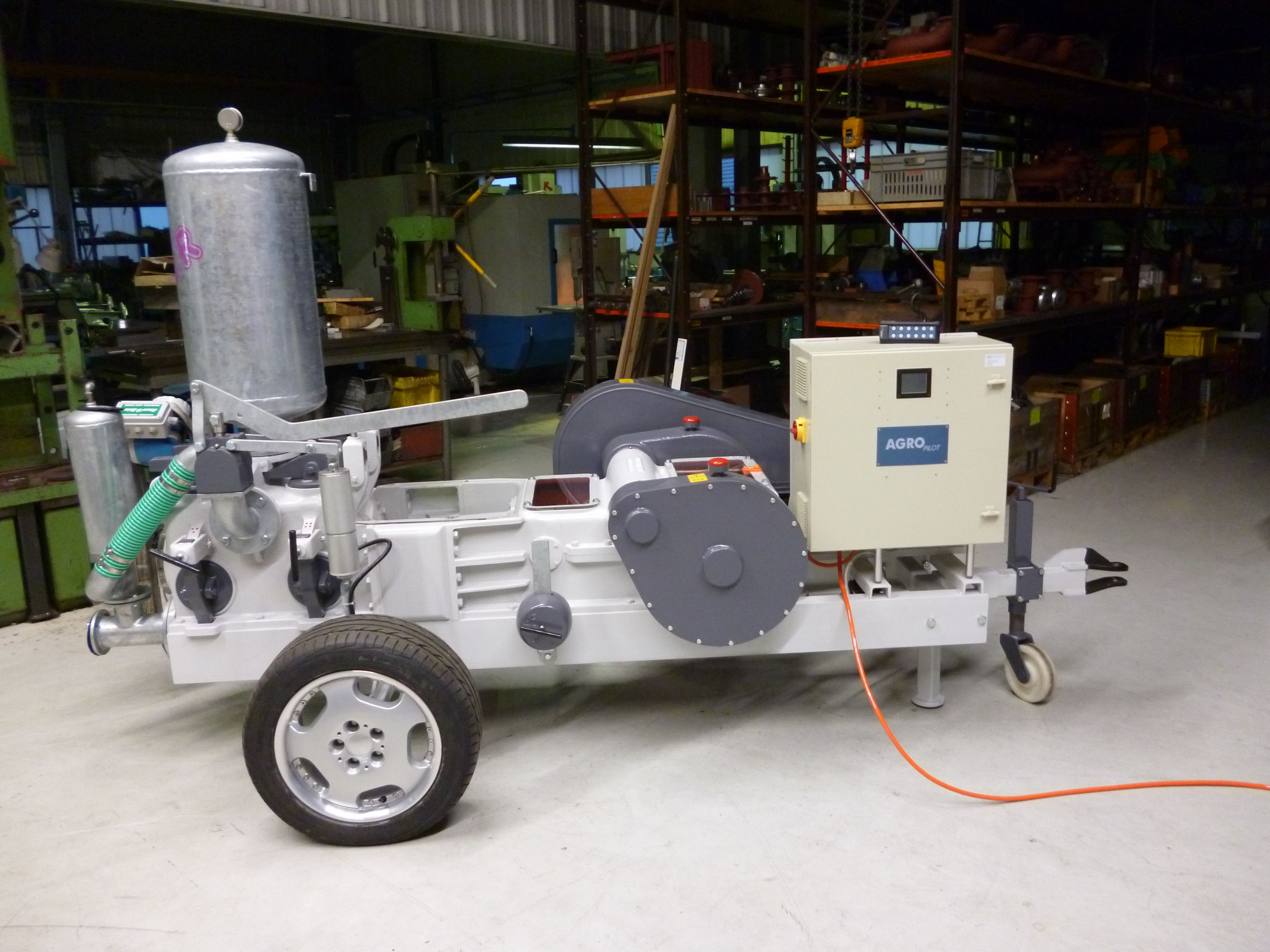

Controls for piston pumps
Contact us for more information
| Performance range | 4 unti 30kW (higher capacities on request) |
| Drive type | Electric motor |
| Connection | 3x400V~ (3L+N+PE oder 3L+PE) |
| Function | Pump control / Motor protection switch / Motor starter |
| Availability | from Stock (standart) |
Our piston pump controls start your motors regulated with frequency converter or input revolutions. The controls can be combined optimally with wireless remote controls and are perfectly adapted to each other. With our consistent product range the controls support efficient evacuation of slurry or plant irrigation or in combination for both tasks. A large number of options satisfy your needs quickly, professionally and cost-effectively.
The piston pump controls are available in various standard versions.
We offer the following standard versions:
- Frequency converter 5.5 – 30kW with three revolutions and AgroPilot wireless remote controls
- Frequency converter 5.5 – 30kW with integrated slider control (slurry/water reswitching), with three revolutions and AgroPilot wireless remote controls
- Frequency converter 5.5 – 30kW with integrated slider and electrocylinder controls with three revolutions and AgroPilot wireless remote controls
- Frequency converter 5.5 – 30kW, pressure regulated and mit AgroPilot remote controls
- Frequency converter 5.5 – 30kW, pressure regulated with programmable timer via TelePilot or SmartPilot
We can implement further client wishes, rapidly, efficiently and cost-effectively.
- Option integrated slider controls for slurry/water reswitching (including wireless connection)
- Option integrated electrocylinder controls fir reflux of slurry pumps (including wireless connection)
- Option turning controls for pumps/suction (including wireless connection)
- Option PT100 motor guard
- Option PTC motor guard
- Option FI switch (25/40/63A)
- Option operational hours counter
- Option undervoltage monitoring
- Option overvoltage monitoring, three-phase monitoring, phase loss monitoring etc.
- Option SPS with or without display for time settings/connections
- Option 3.5” touch display for setting parameters or as machine controls/emergency controls
- Option 7” touch display for setting parameters or as machine controls/emergency controls
- Option 12” touch display for setting parameters or as machine controls/emergency cocntrols
- Option integrated CoDeSys SPS (programmable logic controller) according to IEC 61131-3 for special solutions
- Option integrated MiniPilot (for low-cost wireless applications)
- Option integrated TelePilot (switching with any conventional phone, no SmartPhone required)
- Option integrated AgroPilot (wireless switching over long distances)
- Option integrated SmartPilot (switching by app by iPhone or android)
- Option integrated ProfiPilot (operation with touch display for complete monitoring in the tractor with wireless communication to the pump. Display of pressure, revolutions, flow through etc. possible)
- Further options available on request
- Rapid and cost-effective special solutions
- We optimise your control options and thus reduce your stock.
