Frequency converter pump system with ProfiPilot

Contact us for more information
Range until 5km (without line of sight)
Digital outputs 16
Switching capacity relay 8A / 16A
Digital inputs 12
Analog inputs 2 x 4..20mA
Input voltage 400VAC
Performance range 30kW
Drive type electric motor
Connection 3L+PE
Technologie Frequency converter
Availability Delivery date within 2 weeks

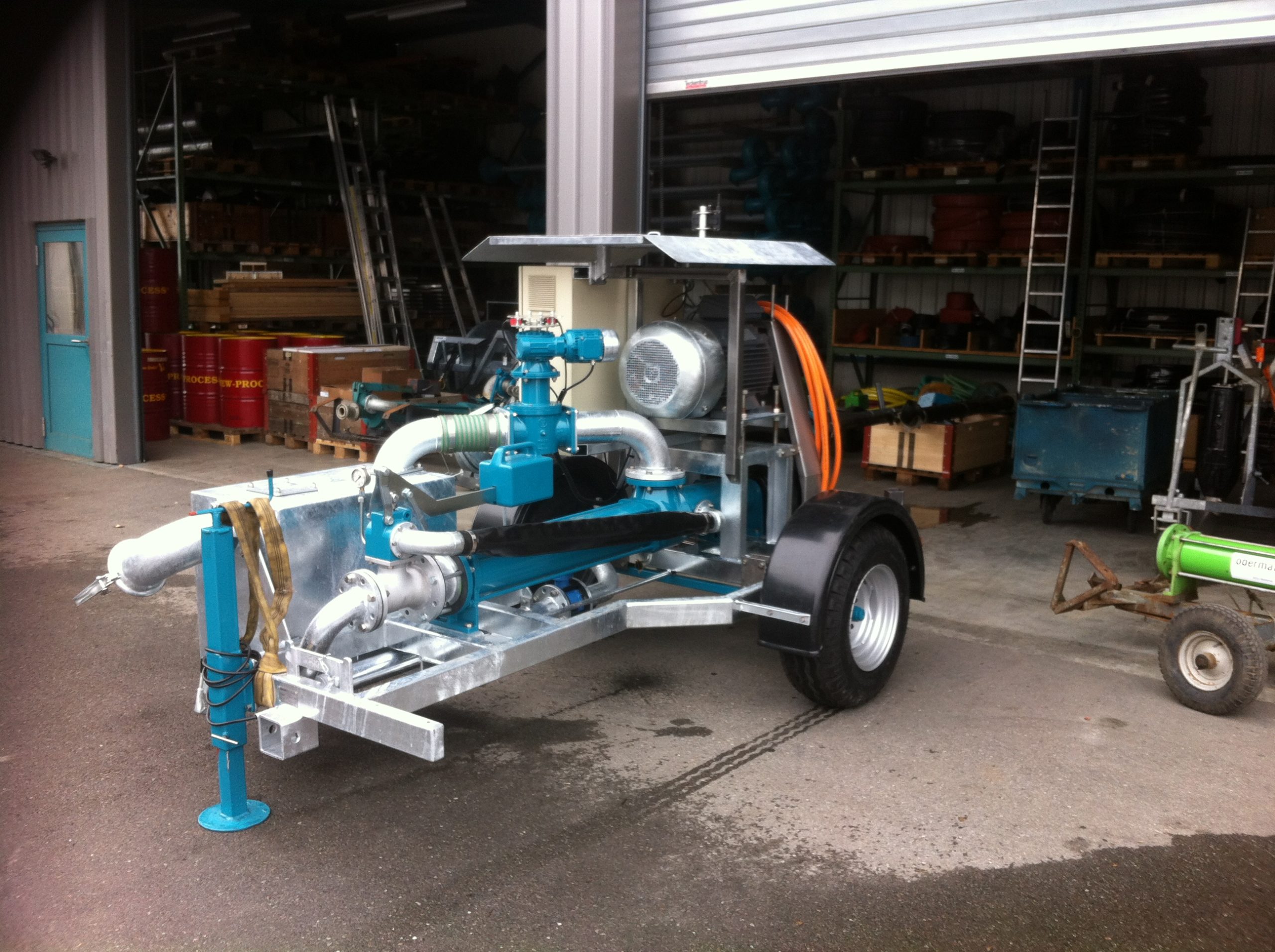

Applications slurry pump, irrigation pump, high-performance slurry pump

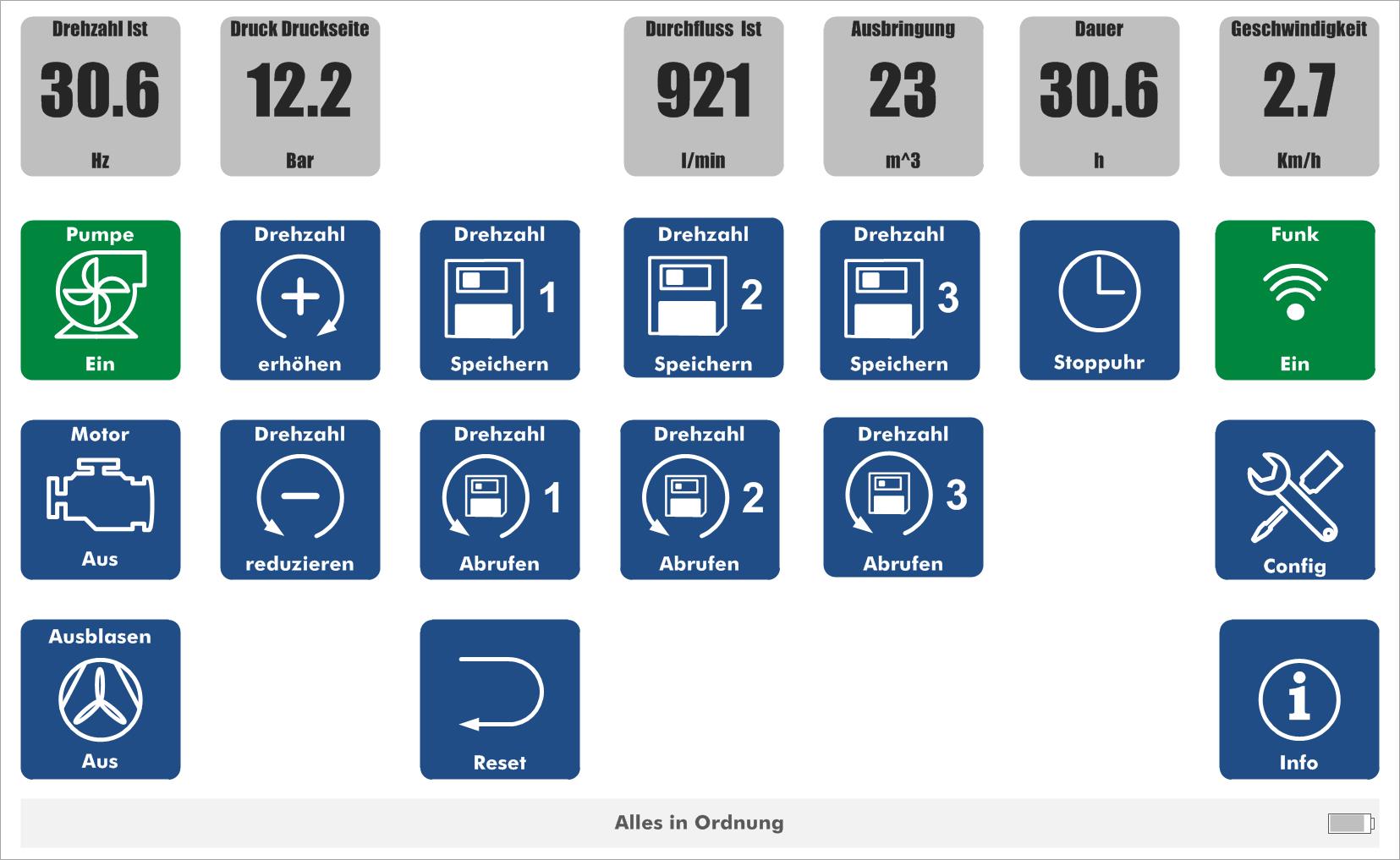

When spreading slurry, more and more efficient working with minimum personnel is required. The high-performance pumps at the manure pit or at the manure container supply the drag hose spreader, which is up to several kilometres away, with correctly dosed manure. With our ProfiPilot radio remote control, the user in the drag hose tractor can optimally monitor and operate the pump. The pump pressure, flow rate, container level etc. are transmitted from the pump to the drag hose distributor. The user sees on the monitor the necessary forward speed for the corresponding application (m^3/ha) and can adjust his speed accordingly. In addition, he can control the speed of the pump depending on the circumstances or he can have the pumping capacity regulated automatically on the basis of pressure or flow.
The radio remote control is approved for the European market and with an RF link budget of 162 dB it is unrivalled in its range (without line of sight up to 5km). The extremely sensitive radio reception of up to -135dBm is a novelty in radio technology and enables us to cover these extremely long ranges while maintaining the permitted radiated power (500mW).
