KameraPilot

Contact us for more information
Product sheet
DE
Operating manual
DE EN
Orderfrom: CHF 560.00
Range (Line of sight) until 100m
Range (without line of sight) 10-20m, with detached antenna can the range again be increased
Frequency 2.4 GHz ISM Band (no interference with Bluetooth, WLAN, etc.)
Input voltage 12VDC / 230VAC
Availability on stock
Scope of delivery variant 1 (Standard) Display with cigarette plug, battery operated lens with magnetic attachment, with 230VAC charger
Scope of delivery variant 2 (Pro) Display with cigarette plug, battery operated lens with magnetic attachment, with 8..15VDC charger
Applications Rear view camera, surveillance, child protection, process analysis of closed machines etc.

Battery-powered wireless rear view camera

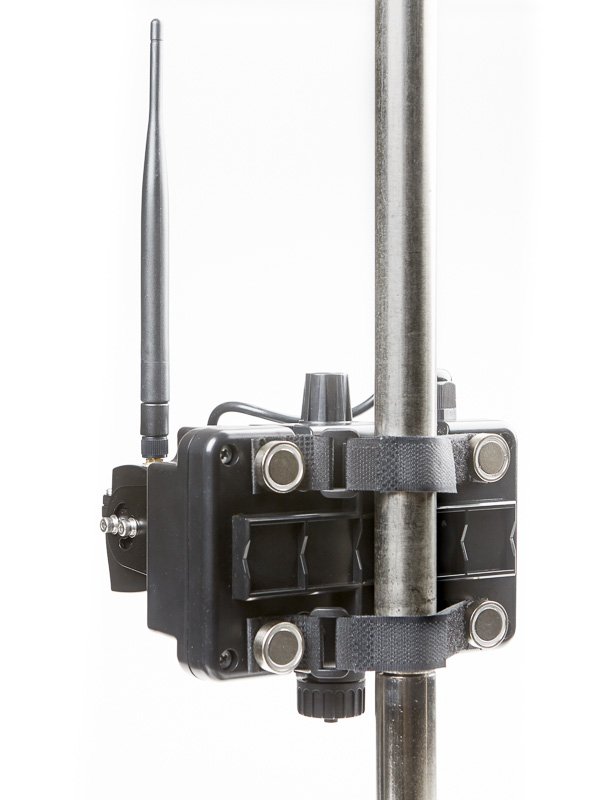

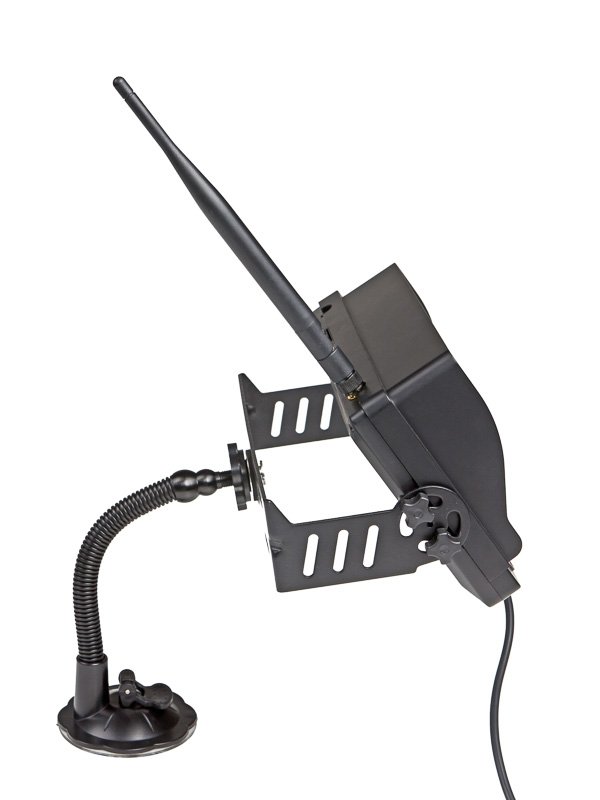

The KameraPilot was developed especially for mobile use with fast changeover times. The camera is powered by a high-quality lithium-ion battery, which allows you to drive or work independently for up to 15 hours. The battery can be recharged in less than 5 hours using the charger. Due to the wide viewing angle of 120° you can monitor over a long distance and with the integrated infrared LED’s you can also see at night. The wireless connection recognizes WLAN and Bluetooth and avoids these interference so that you can work reliably at any time. Due to the good radio distance, you can also monitor long trailers and, if necessary, put down the antenna. The camera is mounted via four strong magnets or via the integrated Velcro fasteners. The 7” monitor is attached to the windscreen via the suction clip and is fed through the cigarette plug. Thus the system can be used immediately without installation effort. Everything is prepared ready to plug in. We are also happy to fulfil your individual wishes and adapt the system to your needs. Since we developed this system ourselves, we can offer you years of service and support and thus protect your investment.

The battery-operated radio KameraPilot is available in the following versions:

Variant 1 (standard) – Article: 701058:
– incl. 230VAC charger for Lithium Ion 10.8V/4.8Ah
– incl. 7″ display with one camera
– incl. Lithium-Ion battery pack for lens
– incl. magnetic holder for battery
. incl. Velcro mounting straps for battery
– incl. gooseneck mounting for display
– incl. cigarette power cable for display
– incl. operating instructions

Variant 2 (Pro) – Article: 701125:
– incl. 8..15VDC charger for Lithium Ion 10.8V/4.8Ah
– incl. 7″ display with one camera
– incl. Lithium-Ion battery pack for lens
– incl. magnetic holder for battery
. incl. Velcro mounting straps for battery
– incl. gooseneck mounting for display
– incl. cigarette power cable for display
– incl. operating instructions

Additional options:

Option remote antenna with 3m antenna cable
Option 8..15VDC charger with 3 pole tractor plug
Option battery-powered additional lens (max. two lenses per display possible)

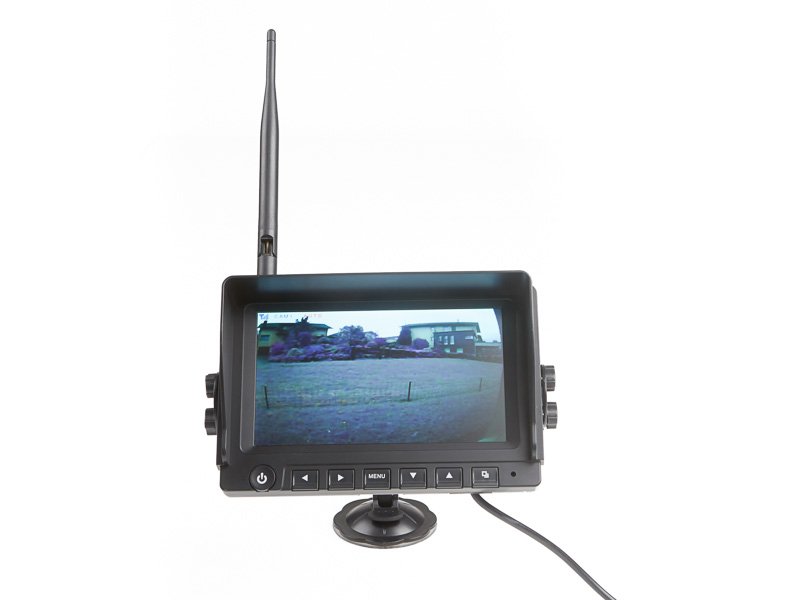

Display

7″ Digital Screen TFT LCD monitor with removable sun visor
2 camera displays (special version up to 4 possible)
Frequency hopping in the 2.4GHz band for interference-free operation
PAL/NTSC colour system
800×480 pixels Display resolution
-15…70°C possible operating temperature
10..32VDC Supply voltage (display only)
External dimensions without sun visor: (L x W x D) (199 x 128 x 28mm)
Weight: 400g

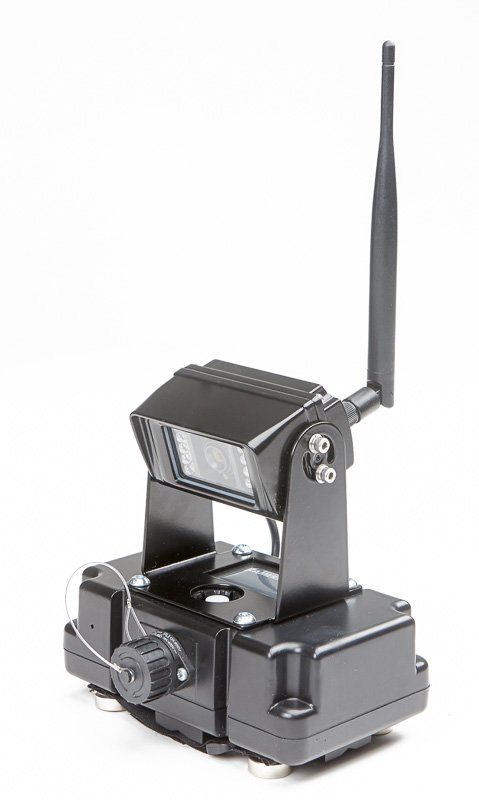

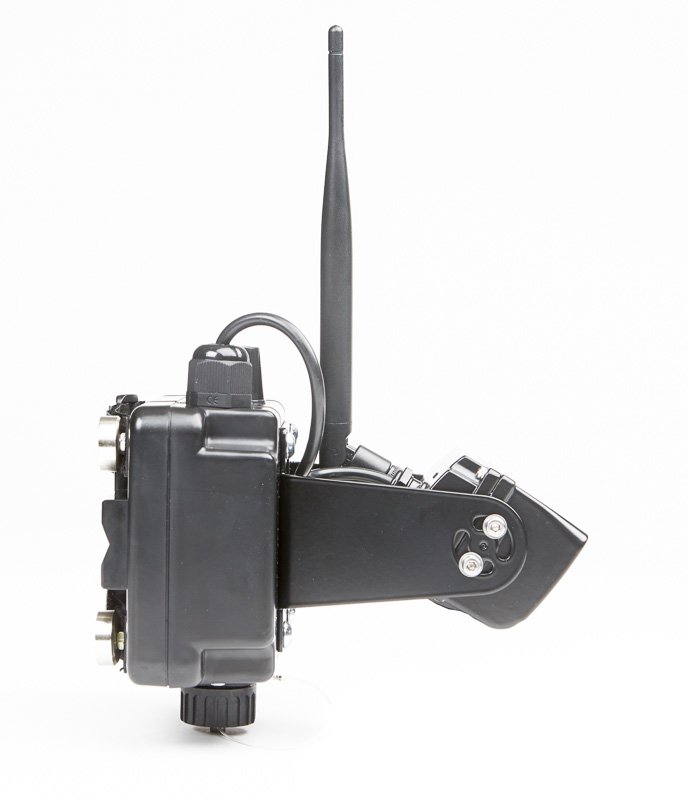

Camera/Lens:

Radio distance up to 100m with line of sight
18 integrated infrared LED’s for night vision
120° angle of view
Protection class IP69K
Vibration resistant up to 10g
10..32VDC supply voltage (camera/lens only)
Outside dimensions without bracket (L x W x D): 106 x 70.4 x 75 mm
Weight: 450g

Battery:

Lithium Ion 10.8V / 4.8Ah
On/off switchable via silicone button
Robust 4 pole charging plug
Operating time approx. 15h
Charging time approx. 5h
Degree of protection IP65
Vibration resistant up to 6g
External dimensions without camera (L x W x D); 150 x 110 x 100
Charger 230V~ (charger and charging electronics directly from 12V cigarette plug available as option)
Weight: 580g

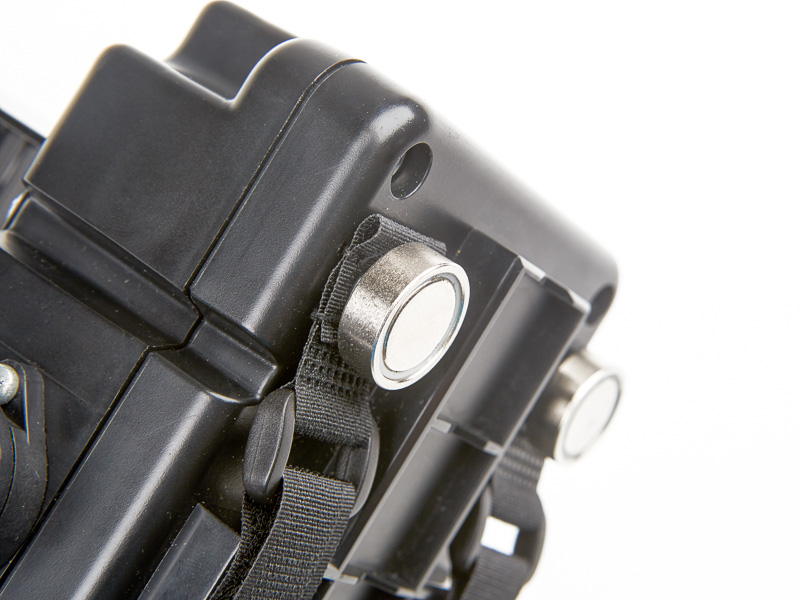

Holding magnet 4 x 19 kg (very strong)
